Details

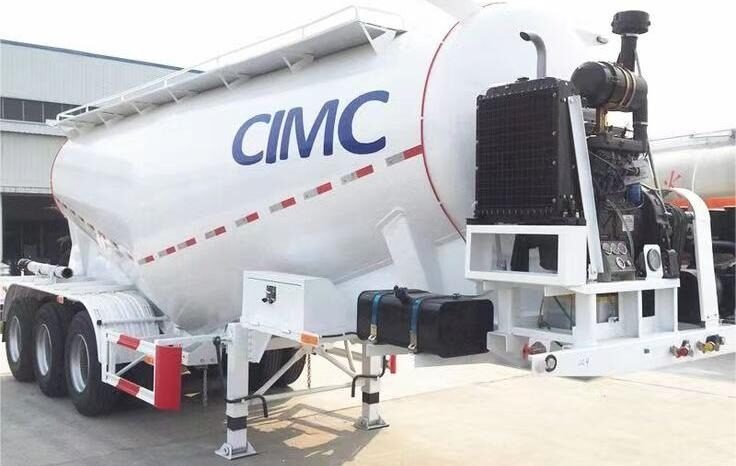

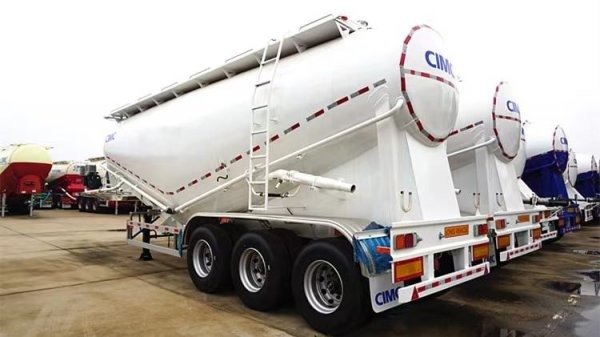

Product Name CIMC 3 Axles Cement Tank Semi Trailer
Function Cement transport
Overall dimension (mm) 10,200 * 2,550 * 3,995
Maximum volume (CBM) 45
Compartment 1
Tank body material 3mm
End plate material 3.5mm
Manhole cover 2 sets, standard
Relief valve 1 set, standard
Air compressor BOHAI brand, HYCW-12/2, 12m³, twin cylinder
Diesel engine WEICHAI TIANHE brand, 4102,
Axle Standard 13 tons * 3 pcs
Suspension system Mechanical suspension 90/10/13
Tire LINGLONG brand, 12R22.5 * 12+1 spare tire
Rim 9.0 * 12+1 spare rim
Central pivot 90mm
Landing gear Standard single acting 28 tonnes
Braking system Four double air rooms and two singles
Engine 1 pcs
Air compressor 1 pcs
Electrical system Voltage: 24v

Socket: 7-way (7-wire harness)

Rear light with indicator, brake light and reflector, side light

A standard 6-conductor cable
Side guard Standard
Paint color / Logo Custom (Polyester paint)
Packaging Waxing before shipment
