Key Features

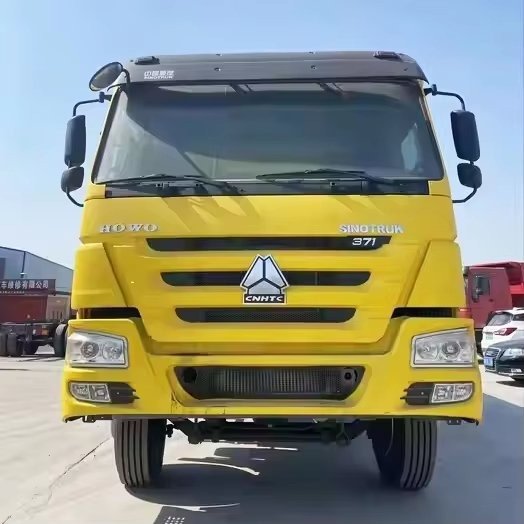

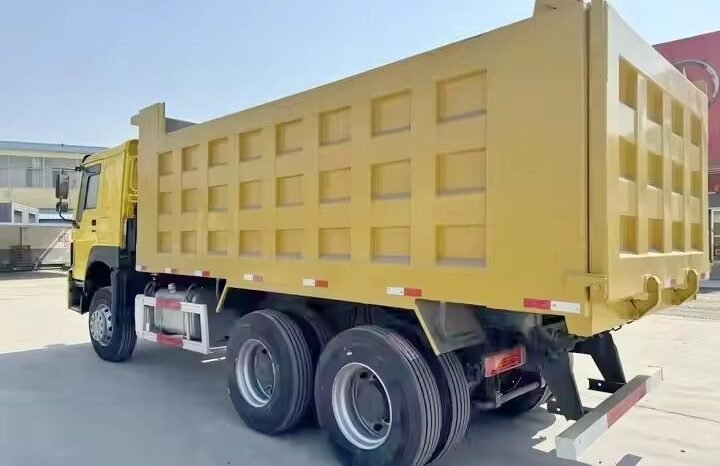

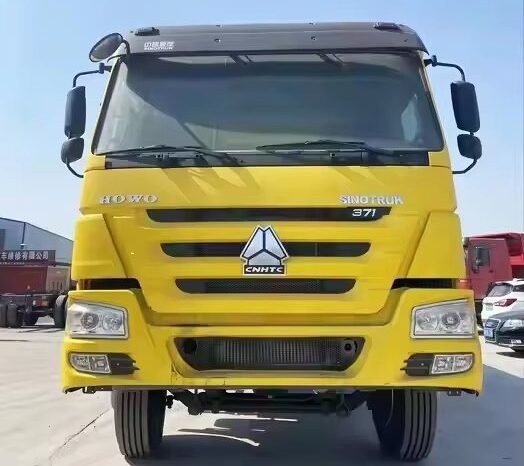

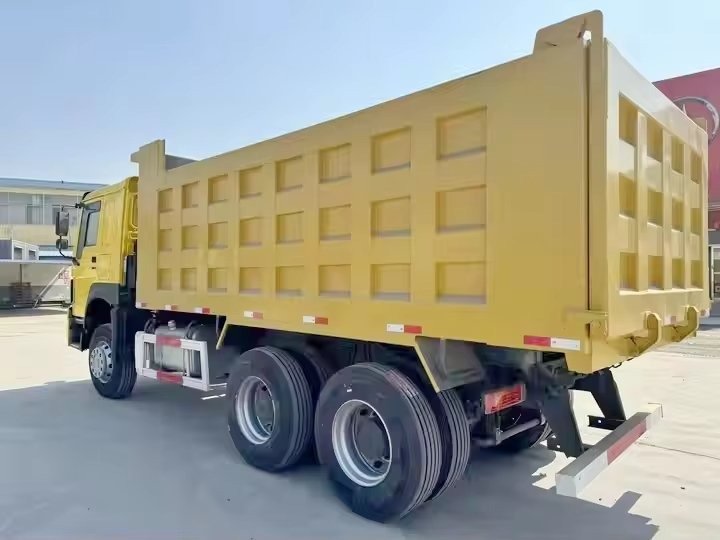

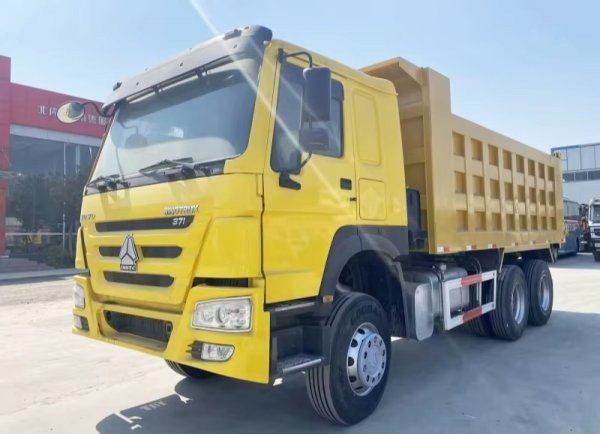

Truck Brand SINOTRUK Howo 371 Dump Truck
Cab HW76
Engine Model Euro 2:WD615.47
Power(Ps/rpm) 273/2200
Maximum torque(Nm/rpm) 1500
Displacement(L) 9.726
Transmission SINOTRUK HW19710 series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission
with double counter shaft ,auxiliary transmission with planetary reduction.
Clutch Φ430diaphragm spring Clutch,Hydraulic control air assisted.
Front axle HF9 drum-type, rated load of 9t

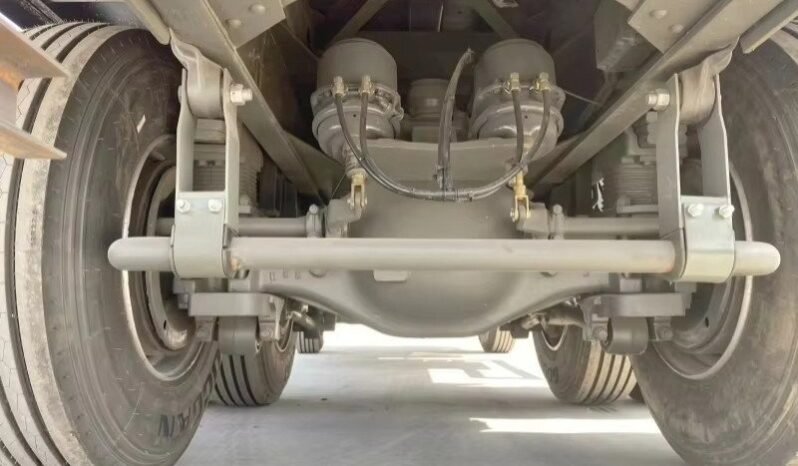

Rear axle HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8
Steering system ZF8118 steering gear, ZF steering oil pump, system pressure 18MPa

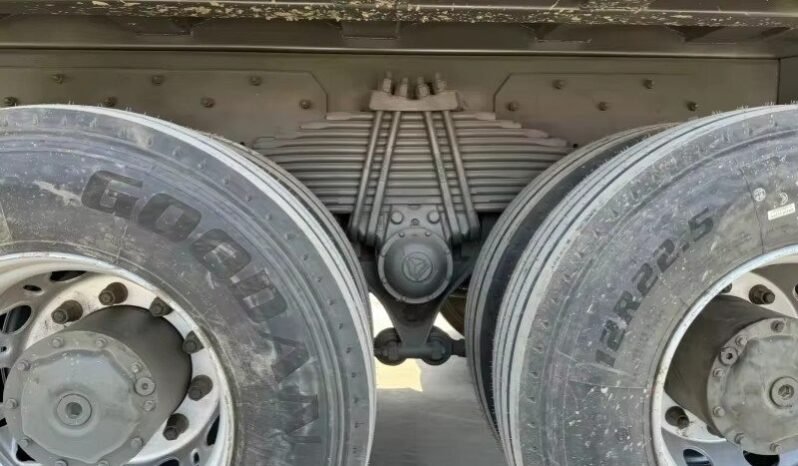

Suspension Steer Axle front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer

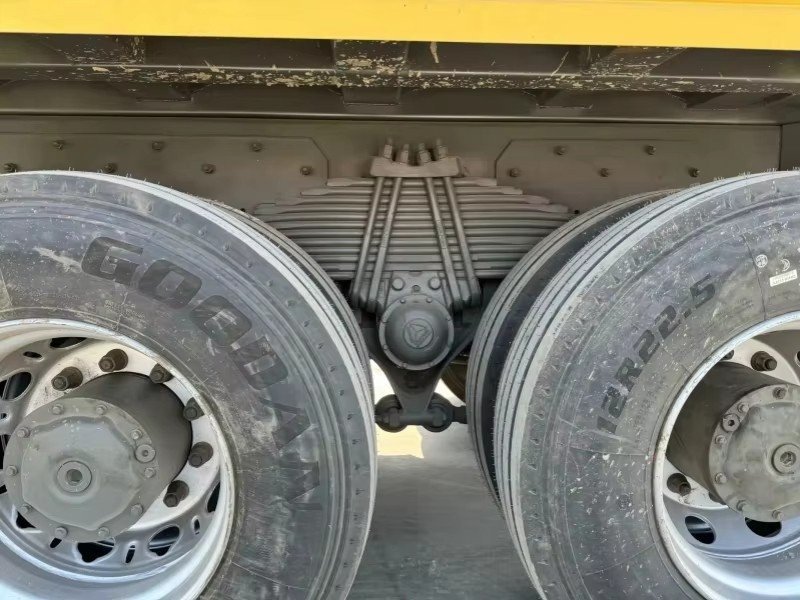

Drive Axle front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer.
Braking system Service brake dual-circuit air pressure brake
Parking Brake spring storage energy without air
Auxiliary brake Engine exhaust braking.
Electric system Voltage 24V
Generator 2240W
Batteries 12V/165Ah,2 pieces
Starter Power 24V,7.5kW
Wheels & Tyres Tyres 12.00R20
Optional 12.00R24,12.00-24

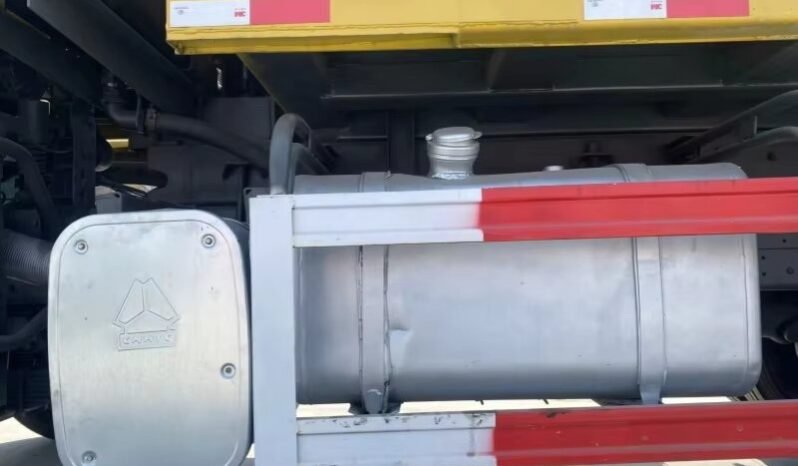

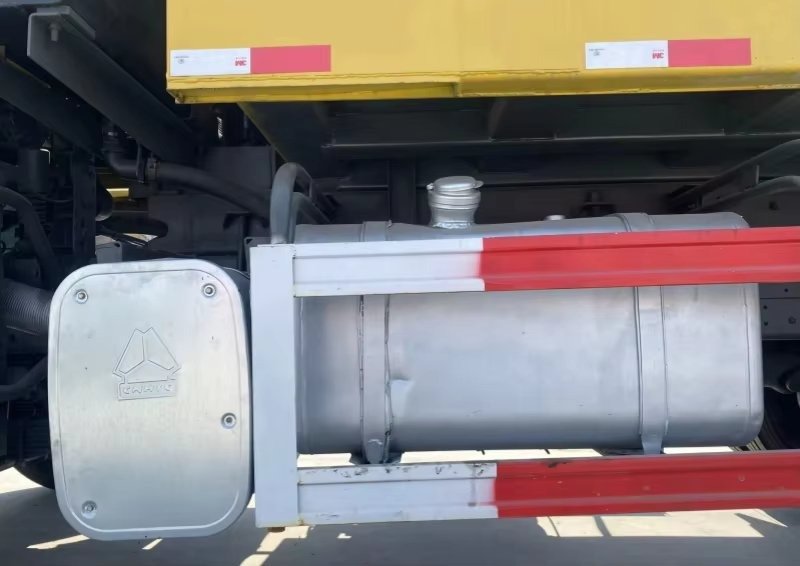

Fuel Tank Capacity 300 Liter
Weights (kg) Curb weight(vehicle/chassis) 12170/8630;12290/8660;12450/8690;12270/8710
Gross Vehicle Weight 25000
Rated load 12420~12700
Vehicle Dimensions (mm) Overall length x Overall width x Overall height (7545~8545)×2496×3170/3450
Wheelbase (3225~3825)+1350
Front/rear overhang(vehicle/chassis) 1500/(1470/715);1500/(1670/740);1500/(1870/900)
Wheel track of front axle 2041
Wheel track of rear axle 1830/1850
Performance Maximum speed(km/h) 79/83
Maximum gradeability(%) 20
Minimum turning diameter(m) 15/16/17
  • Truck Brand: SINOTRUK Howo 371 Dump Truck
  • Cab: HW76
  • Engine:
    • Model: Euro 2 WD615.47
    • Power: 273 Ps @ 2200 rpm
    • Maximum Torque: 1500 Nm
    • Displacement: 9.726 L
  • Transmission: SINOTRUK HW19710 series 10 gears Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.
  • Clutch: Φ430 diaphragm spring Clutch, Hydraulic control air assisted.
  • Front Axle: HF9 drum-type, rated load of 9t
  • Rear Axle: HC16 double reduction (central reduction+wheel reduction), speed ratio: 5.73, 4.8
  • Steering System: ZF8118 steering gear, ZF steering oil pump, system pressure 18MPa
  • Suspension:
    • Steer Axle: Front and rear leaf spring suspension, front suspension with shock absorber, transverse stabilizer
    • Drive Axle: Front and rear leaf spring suspension, rear suspension is disconnected type with transverse stabilizer.
  • Braking System:
    • Service Brake: Dual-circuit air pressure brake
    • Parking Brake: Spring storage energy without air
    • Auxiliary Brake: Engine exhaust braking.
  • Electric System:
    • Voltage: 24V
    • Generator: 2240W
    • Batteries: 12V/165Ah, 2 pieces
    • Starter Power: 24V, 7.5kW
  • Wheels & Tyres:
    • Tyres: 12.00R20
    • Optional: 12.00R24, 12.00-24
  • Fuel Tank: Capacity 300 Liter
  • Weights (kg): Curb weight (vehicle/chassis) 12170/8630; 12290/8660; 12450/8690; 12270/8710
  • Gross Vehicle Weight: 25000 kg
  • Rated Load: 12420~12700 kg
  • Vehicle Dimensions (mm): Overall length x Overall width x Overall height (7545~8545)×2496×3170/3450
  • Wheelbase: (3225~3825)+1350
  • Front/rear overhang (vehicle/chassis): 1500/(1470/715); 1500/(1670/740); 1500/(1870/900)
  • Wheel Track of Front Axle: 2041 mm
  • Wheel Track of Rear Axle: 1830/1850 mm
  • Performance:
    • Maximum Speed (km/h): 79/83
    • Maximum Gradeability (%): 20
    • Minimum Turning Diameter (m): 15/16/17

Applications

  • Construction site transportation
  • Mining operations
  • Heavy cargo hauling
  • Infrastructure projects
