Flatbed container semi trailer is dedicated to transporting various containers, and can also be used to transport ordinary growing goods with its platform. It has sufficient strength and is mainly used in transportation systems such as ships, ports, routes, roads, transfer stations, bridges, tunnels, multimedia transportation systems, etc.

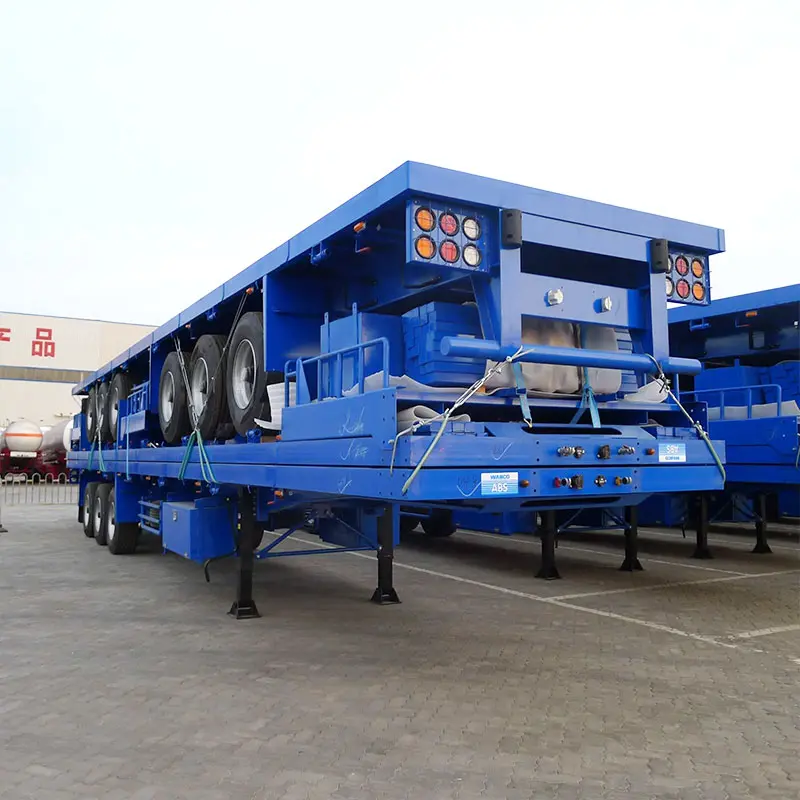

2025 New Type Flatbed Semi Trailer

40ft Flatbed container semi trailer



Specifications of 40ft flatbed container semi trailer

Overall Dimension(Lx W x H) 12500*2500*1550(mm)
Loading Weight( KG) 40 - 80 tons
Axle Brand ZY / FUWA / JOST optional
Axle Number 2 / 3 / 4 optional
Suspension system Mechanical Leaf Spring Suspension
Leaf spring 90(W)mm*16(Thick)mm*10 Layer
The material of Main beam Q345B carbon steel,The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm, middle plate is 10 mm.
Tire 12R22.5
Color optional

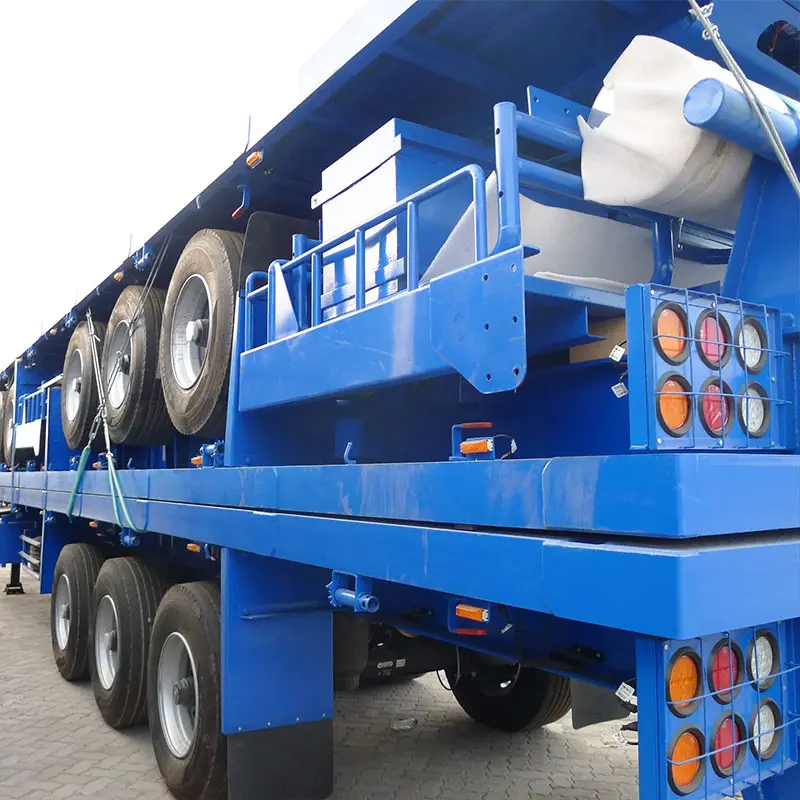

Tri Axle Trailer Truck
