Specification

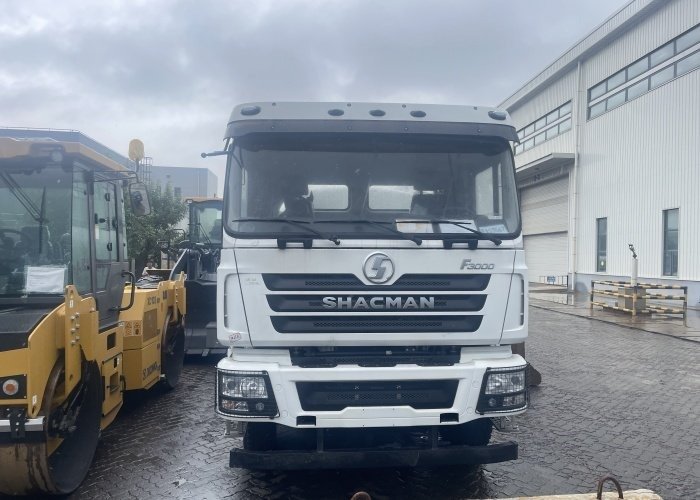

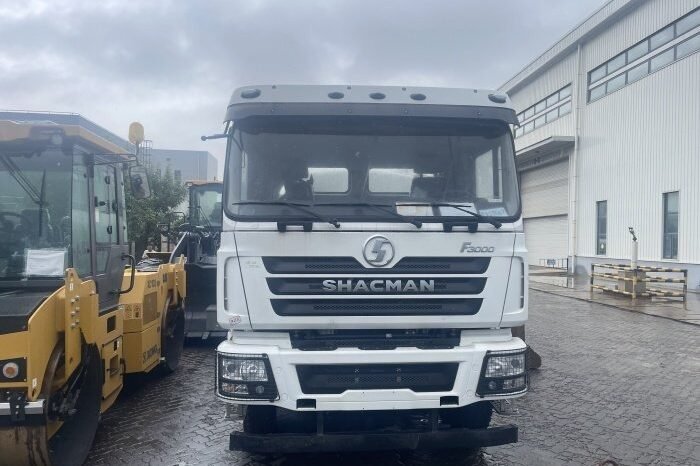

Name Shacman F3000 6×4 Dump Truck Cummins Weichai Engine
Driving model LHD/RHD (left hand drive or right hand drive)
Overall dimension 8545x2496x3350mm (Length x width x height)
Dump body Type of body ”田”
Body size 5600 x 2300 x 1500mm
Body thickness 8mm at the bottom, 6mm at both sides
Lifting system Front hydraulic system or middle hydraulic system
Cabin F3000 One Sleeper Cabin

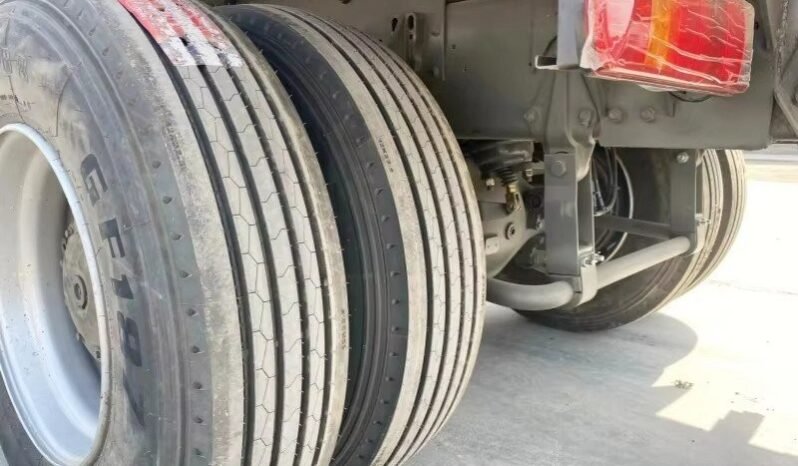

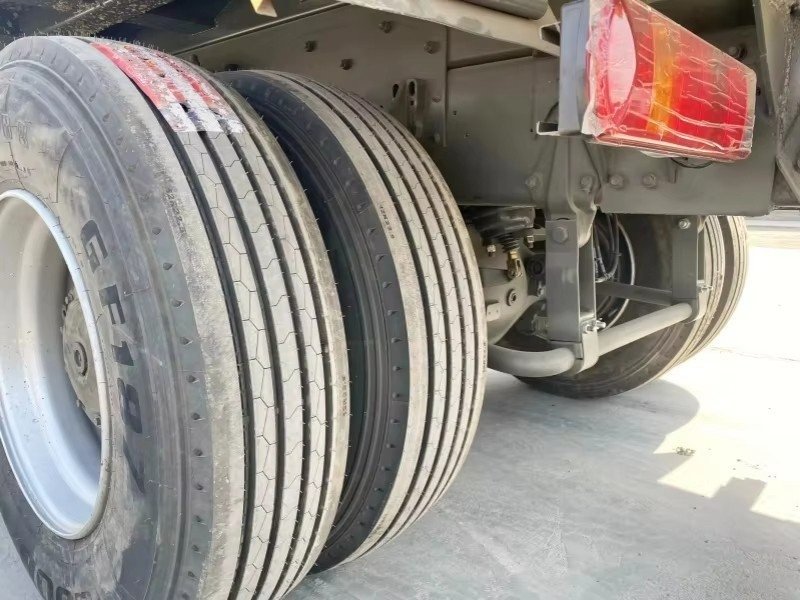

Tires 10+1 spare tyre with rim
12.00R20 radial tyre, 18PR, mixed pattern
Wheelbase 3800+1350mm
Axle MAN7.5 front axle，MAN 13 rear axle

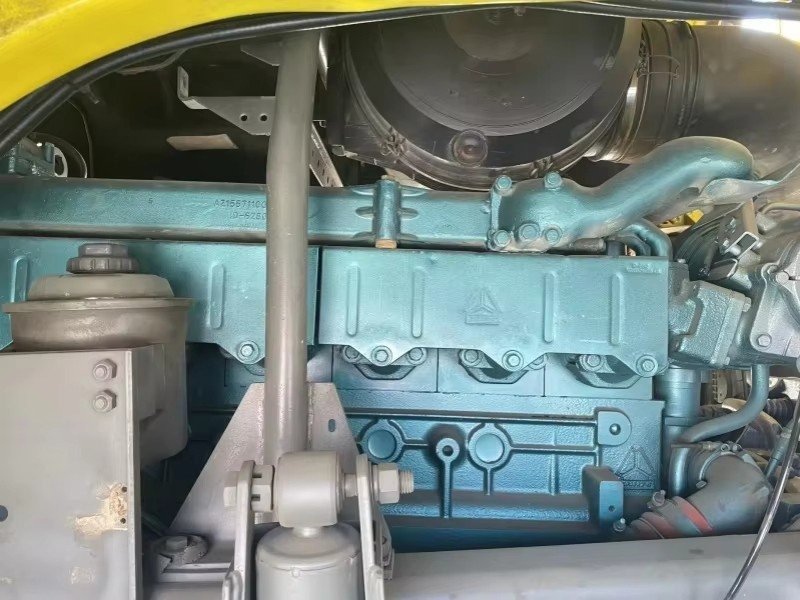

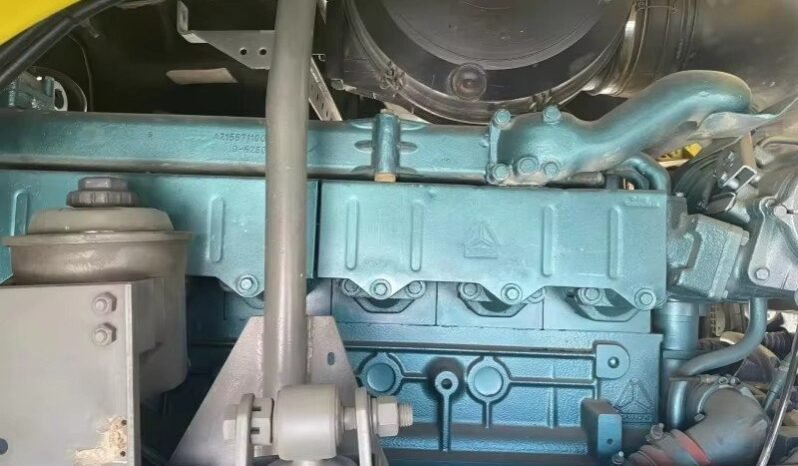

Engine Model WP10.380E22, Euro II, Diesel
Engine power 280KW (380HP) @ 2200 tr / min
Max torque 1600 N.m @ 1500-1800 tr / min
Air intake type turbo-charge and inter-cool
Fuel injection type Direct injection
Gearbox 10JS180 gearbox 10 forward speeds + 2 reverse speeds
Braking system Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Suspension system Strengthen heavy duty Leaf spring type
Frame Double-layer frame (8 + 8/300)
