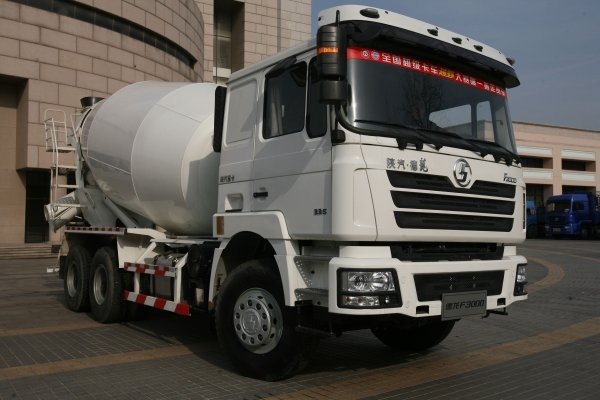

Name New SHACMAN F3000 6×4 10m³ Mixer Truck
Size (mm) 9500 x 2500 x 3950
Tires 12R22.5, 10+1pcs, rim trim cover
Wheelbase 3775+1400mm
Axle MAN9.5T front axle，MAN13T rear axle, speed ratio:5.92
Engine Model WP10.340E22, Euro II, Diesel
Engine power 250KW (340HP) @ 2200 tr / min
Max torque 1250 N.m @ 1400-1600 tr / min
Air intake type turbo-charge and inter-cool
Minimum fuel consumption ≤ 196/ kW .h
Fuel injection type Direct injection
PTO Include
Transmission RTD11509C Transmission, 9 forward speeds + 1 reverse speeds
Fuel tank 380L Steel fuel tank
Suspension Multiple front and rear springs, four main plates + four riding bolts
Main beam Double-layer frame 850×300（8+7）
Tank Specs Tank Volume (m³) 10
Speed reduction system Top
Hydraulics pump ARK
Hydraulics motor ARK
Other F3000 medium-length flat-top cab without roof deflector, hydraulic main seat, four-point hydraulic suspension, rearview mirror, hot zone air conditioner, electric window opener, manual flip, metal bumper-light guard net, three-level Get on the pedal,
Air filter, ordinary exhaust, oil pan protective grille, imported clutch, taillight protective grille, 165Ah maintenance-free battery, elastic headrest, manual sunroof, telescopic shaft control,
Six-channel ABS, front lower protection, driving recorder, cruise control system, speed limit 90km/h, seat belt not fastened reminder, reflective vest, SHACMAN logo, full English logo, special signage
