Main Technology Parameter
Model name Howo-7 Dump Truck
Applicable type Engineering vehicles
Driving type RHD
Traction type 8×4
Number of doors 2
Color Optional
Weights
Gross Vehicle Weight(kg) Approx.15500
Gross Combination Weight(kg) Approx.55000
Dimensions
Wheelbase(mm) 1800+3500+1400
Overall dimension(mm) Approx. 10245*2496*3450
Engine
Engine model WP10.380E22 380HP, WEICHAI Engine
Emission standard Euro 2
Engine type 4 stroke water-cooled, inter-cooling
No. of cylinders Straight-6 cylinders
Maximum torque N.m/r/min 1350/1300-1600
Bore x Stroke 126x130mm
Displacement(L) 9.726 / Diesel
Max. output (kw) 273kW
Fuel Tanker（L） 300 aluminum fuel tank
Drive Line
Gearbox HW19710+HW50
10 forwards, 2 reverse gear, manual geabox
Steering Bosch steering, Power steering,
Brake Dual circuit pneumatic braking, engine exhaust brake
Clutch 430 diaphragm
Cab
Cabin HW76 cab;

Can be tipped forwardly, with inner A/C and one sleeper bed
Number of passengers/seats 2
Standard configuration Air container
Axle
Front axle VGD95-drum brake
Rear axle HC16-double reduction pneumatic brake, double reduction driving   axles with inter-wheel & inter-axle differential locks

Axle ratio 5.451
Tire
Tire specification 12.00R20

Standard tire,12 tires+1 spare part
Parameter
Economic   speed/maximum speed (km/h) 40～55/90
Max. Gradeability 35(%)
Rear   overhang(mm) 850
Suspension Front and rear multi leaf springs (11/11/12)
Frame(mm) Double decker frame (8+8/300)
Bumper High mounted bumper (all metal)
Color Customized
Other Reverse buzzer, off car start stop switch,   Bosch steering gear, rear towing hook, engineering version intake system (oil   filter), fire extinguisher, intercooler protection device

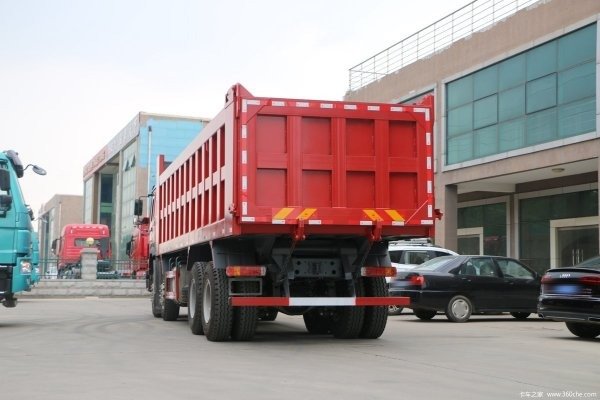

Cargo box
Dimension(mm) 7300x2300x1500
Box volume(m3) 25.2
Material Carbon steel plates
Style Tin word format
Thickness Bottom 8mm sides 6mm
Lifting method Domestic front lifting
Door opening direction Rear door opening
